ONE AXLE SLURRY TANKS HOMOLOGATED
One axle slurry tanks (tank vehicles) have a large container for transporting and spreading manure. Designed and manufactured
according to the place they have to work, i.e. in plain and hilly areas tanks must be high and short enough, while in highlands little and
long tanks are recommended.
2000 to 5000 liters capacity tanks have the following features:
- the rear bottom can completely be opened
- inside stiffener ring
- internal breakwater plates
- two bowls flanged overflow valve
- pressure relief valves with pressure gauge
- mano-vacuummeter
- level indicator with protection
- siphon for loading and unloading unit
- trays on tank for carrying suction hose
- manual or hydraulic locker knife valve gates placed on one side or back
Slurry tanks can have:
- loading and unloading unit for suction and compression and centrifugal pump
- swivel cast iron pipe
- rear plough for umbilical slurry spreading
- side extraction arm
- rigid or flexible leaf springs (elliptical/parabolical)
- Axle or motorized axis
- Visual and lighting signaling
- Different kind of tires
- Homologated rotating drawbar eye
- Universal joint shaft, B4 or B5 protection included
- Parking jack
- Loading bay chock
Manual brakes: hydraulic through a pump working thanks to a mechanical unified lever; independent – hydraulic transmission; hydraulic
– continuous or pneumatic one and continuous-mechanical one.
In order to meet the final use requirements besides the basic equipments, some customized elements can be added. For example, for
guaranteeing the best long lasting, slurry tanks can be completely finished as hot-galvanized (inside and outside) and some elements can
be painted.
The final product is delivered with the identification plate, CE declaration of conformity, user manual and documents for the road
homologation.
Click on the picture to enlarge

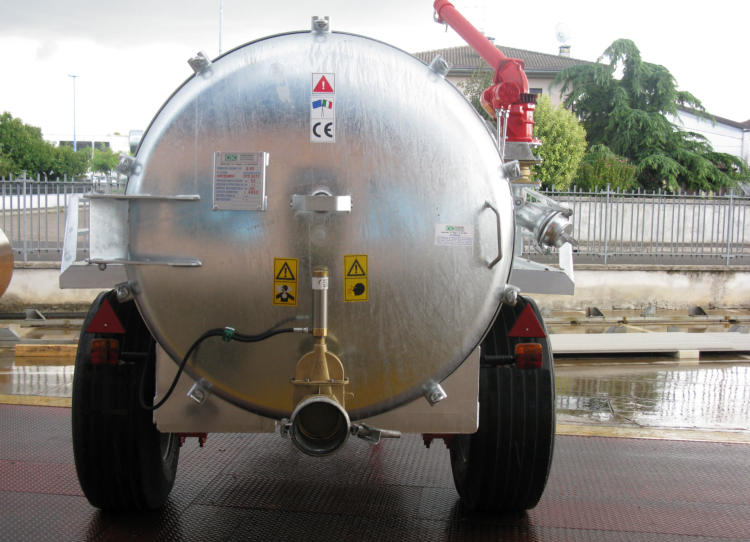

Rear View

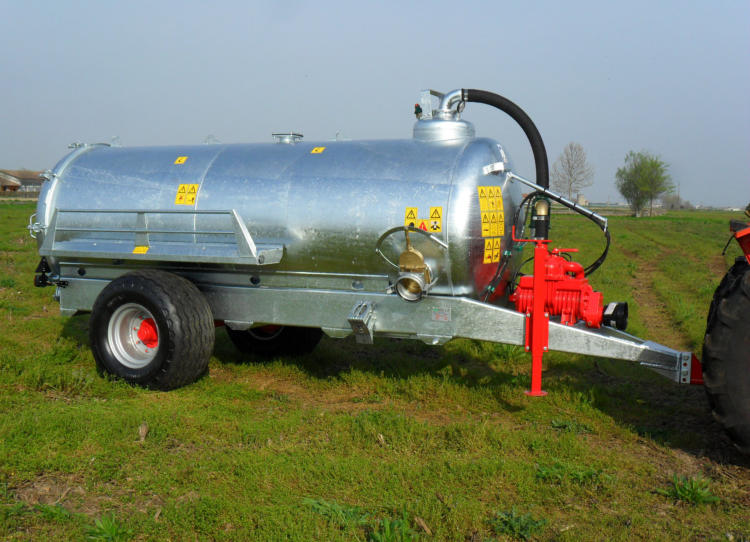

Side View

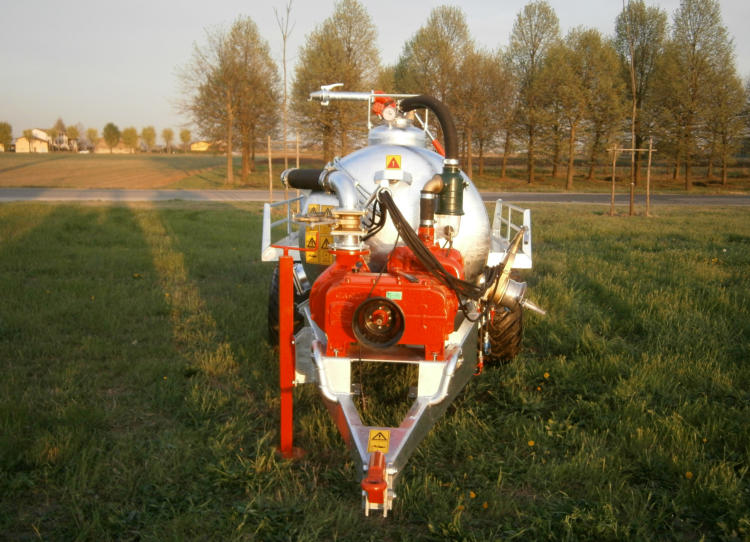

Front View

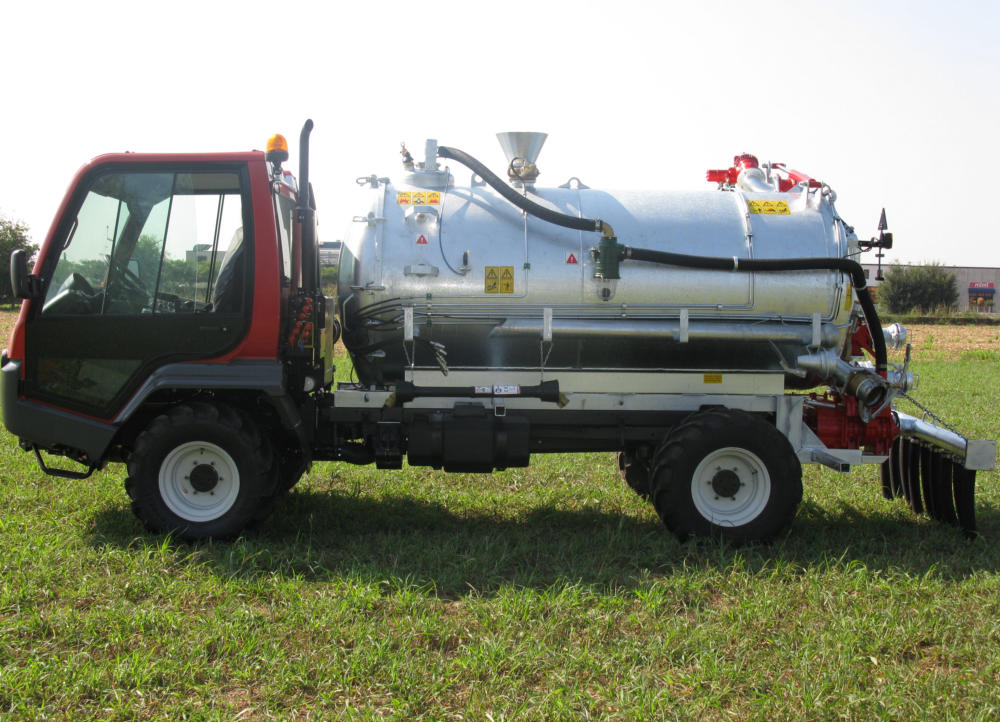

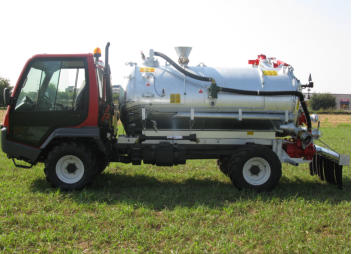

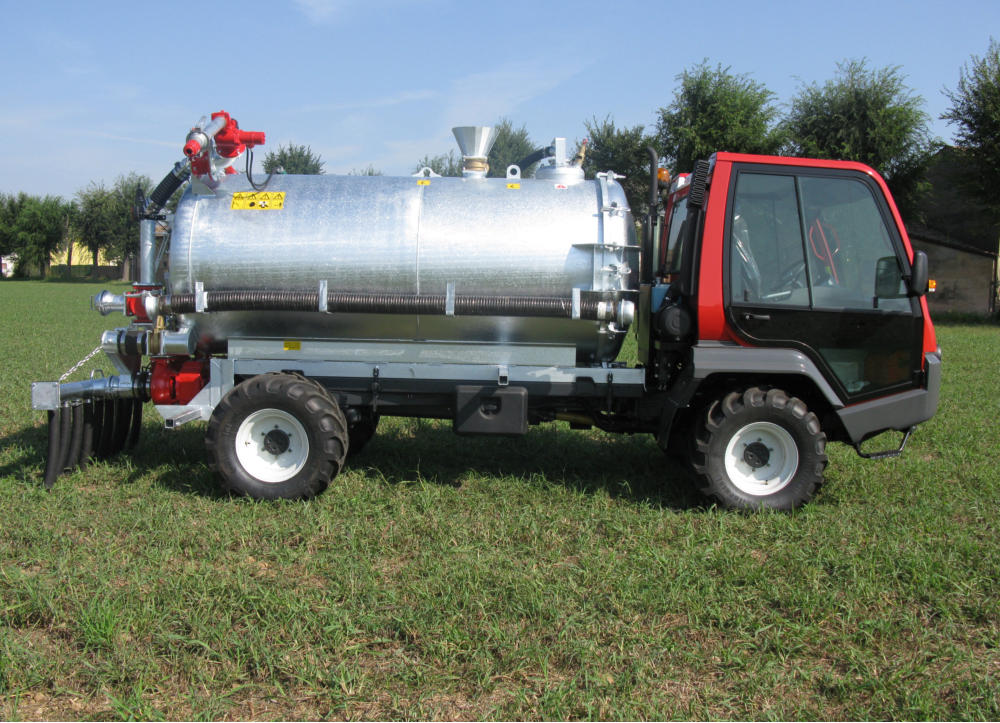

TANKS FOR TRANSPORTERS
Hot-galvanized tanks, suitable for transporting and spreading manure, designed for fitting up transporters specially in highlands and hilly
areas.
Tanks can have different capacities according to the transporter dimensions. They can be customized in order to satisfy the client’s final use
needs:
the whole bottom can be opened
inside stiffener ring
internal breakwater plates
two bowls flanged overflow valve
pressure relief valves with pressure gauge
mano-vacuummeter
level indicators with protection
siphon for loading and unloading unit
trays on tank for carrying suction hose
manual or hydraulic locker knife valve gates placed on one side or back
locker knife valve gate for unloading in highlands
locker knife valve gate and conical loader in the upper part
pressure/vacuum pump

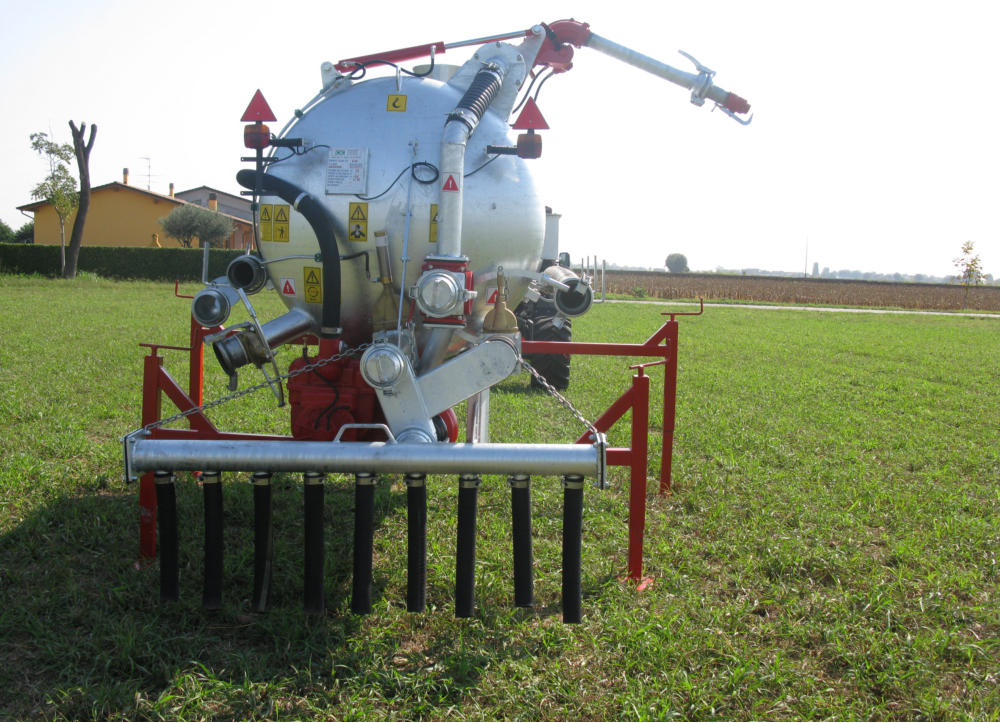

dribble bar close to the ground
swivel cast iron pipe
visual and lighting signaling
universal joint shaft, B4 protection included
four parking jacks
user manual
MANURE SPREADER TANKS TO COMBINE WITH TRAILERS
AND/OR INDUSTRIAL TRUCKS HOMOLOGATED AND NOT
HOMOLOGATED
Tanks manufactured with plates suitable for hot-galvanization, class 1. They can be supplied galvanized, accessories included or
unfinished for realizing other applications. They are suitable for transporting and spreading manure, designed for fitting up hooklift trailer
and/or industrial trucks, wire welded and submerged arc welded.
Tanks can have different capacities according to the client’s requirements and can be customized in order to satisfy the final use needs:
the whole bottom can be opened or there is a rear swivel cap
inside stiffener rings; their quantity change according to the capacity
internal breakwater plates
fairings
steel stubs and different bearings
two bowls flanged overflow valve
pressure relief valves with pressure gauge
mano-vacuummeter
level indicators with protection
siphon for loading and unloading unit
ready for installing the arm
supports for swivel cast iron pipe
When tanks are delivered they can be homologated with the identification plate and the CE declaration of conformity, or not homologated
and the final assemblage is made by the customer.

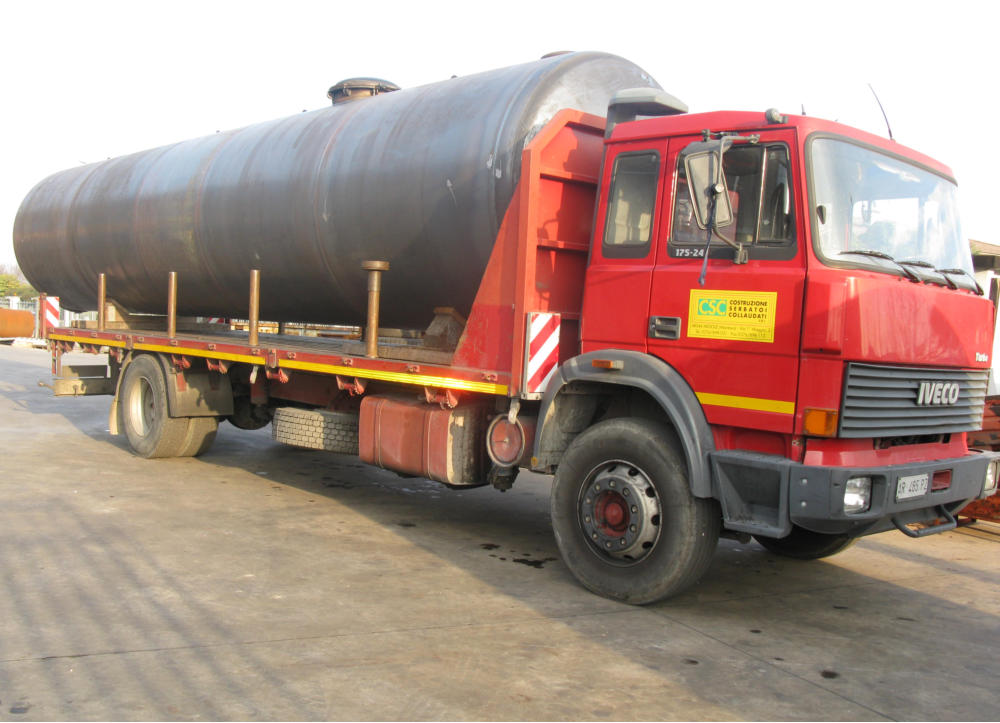

Iron made tank
